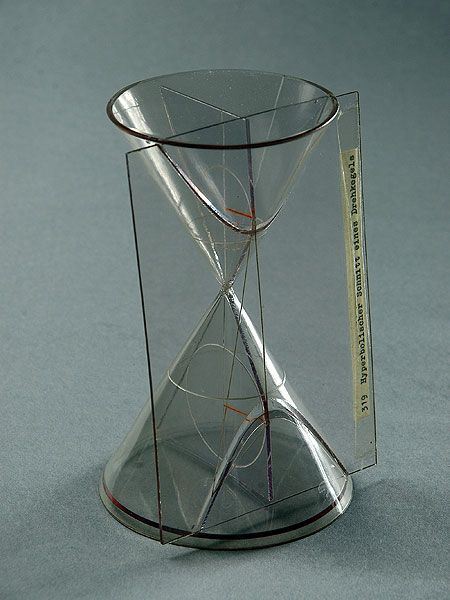

The model shows a cone of revolution and a section plane E that forms a smaller angle with the axis of revolution than the cone's generatrices. Consequently, E intersects the cone of revolution along a hyperbola.

The Dandelin spheres are indicated by great circles that contain both the cone axis and the foci of the hyperbola. The line segments required to derive the hyperbola's focus and directrix properties are included in the model.
