An animation of the Roman Surface

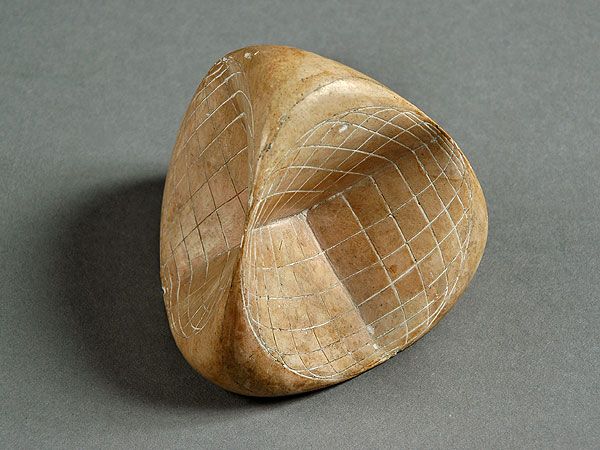

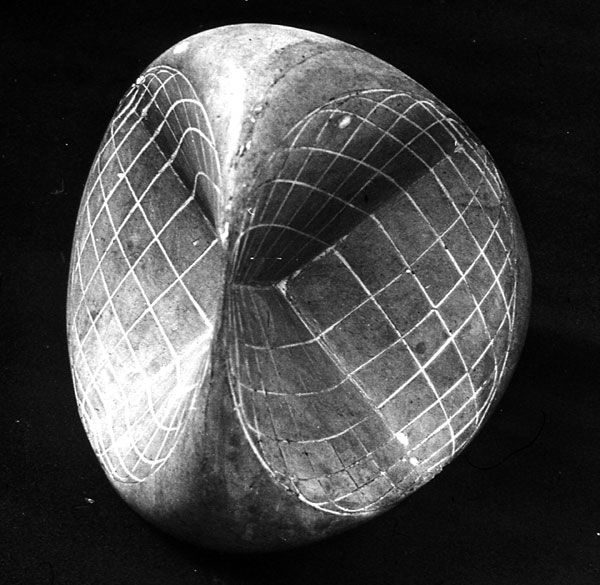

The Roman surface (so called because Jakob Steiner was in Rome when he thought of it) is a self-intersecting mapping of the real projective plane into three-dimensional space, with an unusually high degree of symmetry. This mapping is not an immersion of the projective plane; however the figure resulting from removing six singular points is one.

The simplest construction is as the image of a sphere centered at the origin under the map f(x,y,z) = (yz,xz,xy). This gives us an implicit formula of

x2y2 + y2z2 + z2x2 − r2xyz = 0.
