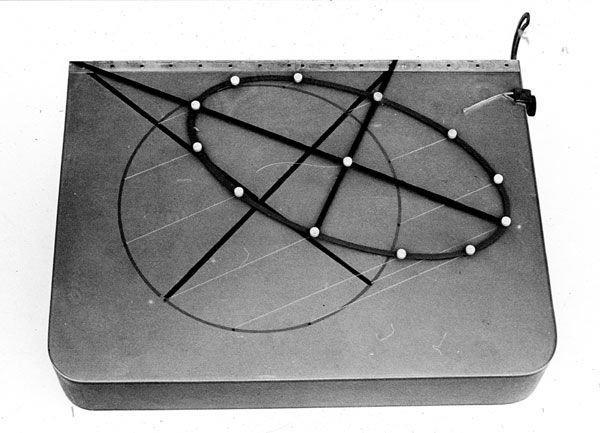

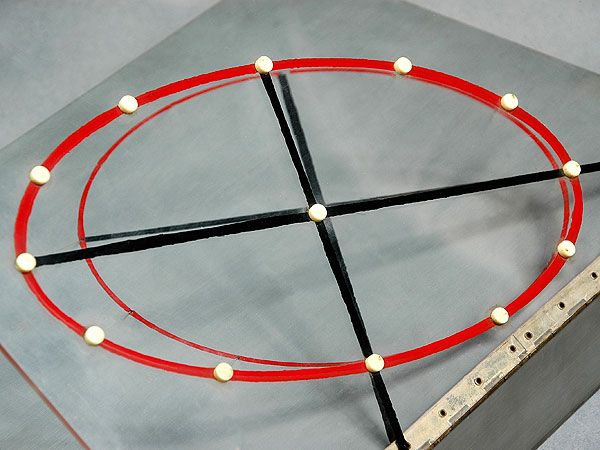

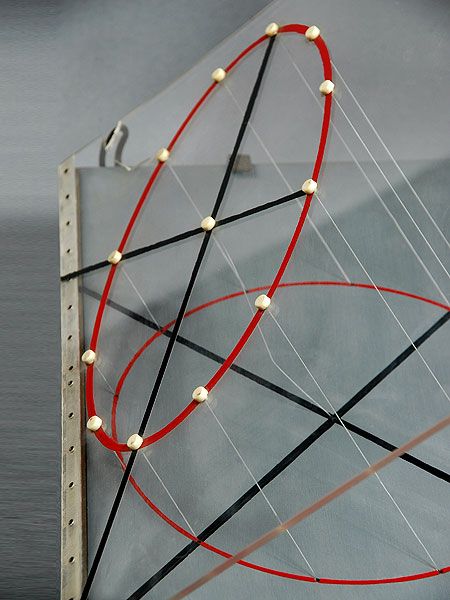

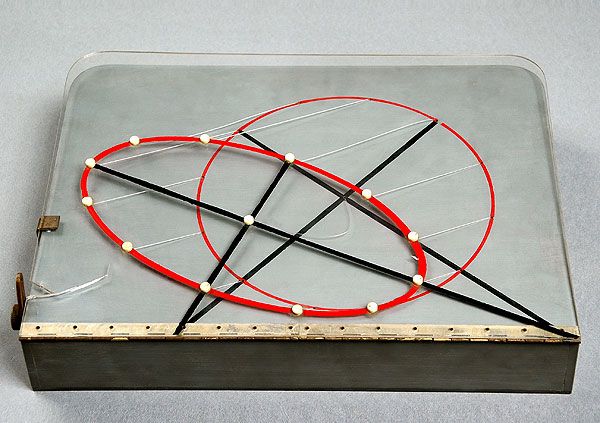

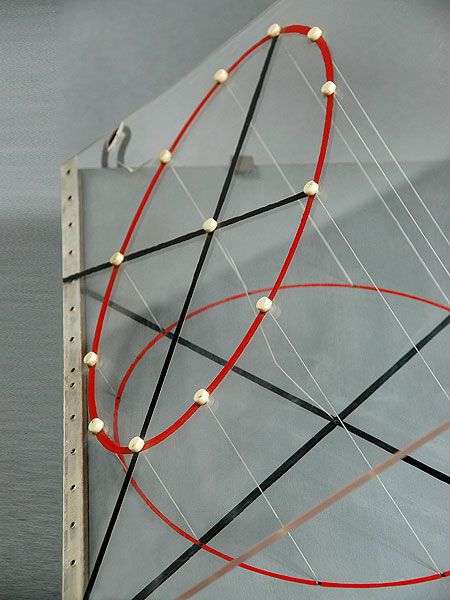

The model shows the parallel projection of a plane E1 onto another one E2. E2 can be revolved about its intersection line with E1, as far as that both planes coincide, thus an affine correspondence in this plane is determined. In this model the affine mapping of a circle is represented and shown, how the axes of the corresponding ellipse are determined from the diameters of the circle.
